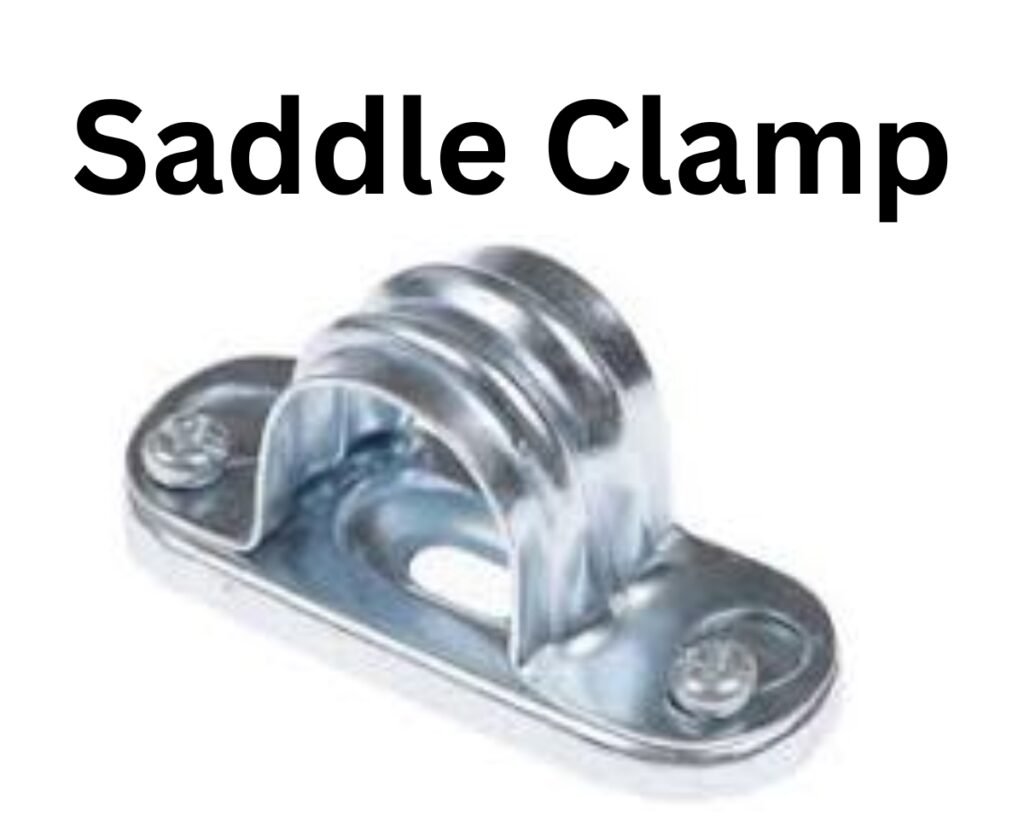

A saddle clamp is a tool that grips pipes securely and supports their connection to additional components. These clamps are shaped like saddles and fit around pipes firmly. Their design ensures minimal disruption to system operations during installation.
Studies and industry reports praise saddle clamps for their efficiency and versatility. Researchers highlight their role in enabling seamless connections without halting fluid flow. Experts note their adaptability across various industries, from plumbing to industrial pipelines. These findings validate the reliability and significance of saddle clamps.
Saddle clamps are more than simple pipe holders; they are essential problem solvers. Their quick installation saves time and money. Their reliable design prevents leaks and stabilizes systems. These features make them a critical choice for industries requiring durable and efficient solutions. Saddle clamps consist of a saddle-shaped body, a clamping mechanism, bolts, and a sealing gasket. Together, these components create a durable and reliable structure.
Why Are Saddle Clamps Essential?
Saddle clamps are critical because they simplify complex systems. They allow for installation and maintenance without interrupting operations, reducing downtime. Their applications span a range of industries, from plumbing to industrial automation.
Types of Saddle Clamps
Different industries and applications demand unique designs. Here are the most common types:
1. Grip or Anchor Saddle Clamps
These clamps firmly hold the pipe in place, preventing any movement. They are ideal for environments requiring stability, such as industrial pipelines transporting liquids or gases under high pressure. Their tight grip ensures the pipe stays secure, even during vibrations or pressure fluctuations.
2. Non-grip or Guide Saddle Clamps
Non-grip saddle clamps offer more flexibility. They allow the pipe to move slightly, which is beneficial in situations where thermal expansions or vibrations occur. These are common in HVAC systems or industrial machinery.
3. Tapping Saddle Clamps
A tapping saddle clamp used in water supply systems allows for the addition of new connections without disrupting the flow of the primary line.
4. Reinforced Saddle Clamps
Designed for high-pressure systems, these clamps come with extra reinforcement to handle heavy loads.
5. Custom Saddle Clamps
For unique projects, custom clamps can be manufactured. They cater to specific dimensions, materials, or functionalities as requested by the user. Each type is tailored to specific jobs, ensuring that users always have the right tool for their application needs.
Common Applications of Saddle Clamps
Here’s how they serve different sectors:
Plumbing and Waterworks
Saddle clamps make plumbing jobs easier. They’re often used to add valves, meters, or branch lines to water pipelines without shutting off the main supply. This benefits municipal water systems and residential plumbing.
Agriculture
Irrigation systems rely on saddle clamps to split water supply lines for efficient water distribution in fields. The ability to make quick connections helps farmers reduce installation times.
Oil and Gas
High-pressure oil and gas pipelines depend on reinforced saddle clamps for durability and safety. These clamps provide secure seals, reducing the risk of leaks.
Automotive
Saddle clamps find applications in fuel systems and exhaust systems. Their sturdy design ensures that pipelines stay in place even with constant movement and temperature variations.
Industrial Automation
Clamps are used to attach sensors or measuring devices to pipelines in industrial settings. This enables real-time monitoring of systems without disrupting operations.
No matter the application, saddle clamps contribute significantly to safety, efficiency, and innovation.
Components of a Saddle Clamp
Understanding saddle clamps requires knowledge of their parts. A typical saddle clamp includes:
- Saddle Body: The important component that hugs the pipe.
- Clamping Mechanism: Bolts or screws are used to tighten the clamp securely around the pipe.
- Sealing Gasket: This ensures the connection is leak-proof. It is often made of rubber or an advanced material based on the application.
- Bolts and Nuts: They allow the clamp to remain tightly secured.
These components work together to create an effective and reliable unit that can handle challenging environments.
How to Install a Saddle Clamp
Saddle clamps simplify installation, saving time and effort. The process can be broken down into two methods—hot tap and dry tap. Here’s a step-by-step guide for each:
Hot Tap Installation (When Fluid Flow Continues)
- Preparation: Gather the saddle clamp, tools, and sealing materials. Ensure the work area is clear and safe.
- Position the Clamp: Wrap the saddle body around the pipe and attach it using bolts.
- Drill the Pipe: Use a hot tapping tool to drill into the pipe without interrupting the flow.
- Test for Leaks: Perform a pressure test to confirm there are no leaks before finalizing.
Dry Tap Installation (When Flow Is Stopped)
- Turn Off Flow: Shut down the system and drain any remaining liquid.
- Clean the Pipe: Remove oil, rust, or dirt from the area where the clamp will be installed.
- Install the Clamp: Align the saddle and tighten the bolts.
- Drill the Connection: Cut holes carefully using a pipe cutter or drill to ensure no damage to the surrounding material.
Both methods ensure secure connections, but the hot tap offers the advantage of uninterrupted service.
Advantages of Saddle Clamps
Saddle clamps are favored for their practical benefits, such as:
Ease of Installation
This saves time and resources.
Cost-Effectiveness
By eliminating the requirement for extensive modification or welding, saddle clamps are a cost-effective solution.
Versatility
Available in a wide range of sizes and materials, saddle clamps cater to diverse needs.
Leak Prevention
Thanks to their sealing gaskets, they provide reliable, leak-proof connections.
Durability
Made from sturdy materials like ductile iron or stainless steel, saddle clamps ensure long-lasting performance.
These advantages make them an ideal choice for many critical applications.
Materials Used in Saddle Clamps
The material selection for saddle clamps depends on their intended use. Common materials include:
Ductile Iron
Strong and durable, ductile iron is appropriate for pipelines under moderate pressure.
Stainless Steel
Corrosion-resistant and robust, stainless steel is suitable for marine or chemical environments.
Plastic (PVC or PE)
For low-pressure systems, plastic clamps are lightweight and cost-effective.
Rubber or Silicone
Used for sealing gaskets, these materials provide flexibility, even in extreme temperatures.
Each material brings unique properties to meet the needs of specific systems.
Why Saddle Clamps Are Crucial in Modern Industries
Saddle clamps might seem simple, but their contribution cannot be overstated. They represent an intersection of functionality, flexibility, and innovation. Whether it’s streamlining water supply in communities, enabling modern agriculture, or ensuring safety in high-pressure pipelines, saddle clamps play a pivotal role in maintaining the pipes that support our world.
Conclusion
By reducing installation time and allowing non-invasive additions or repairs, the saddle clamp also contributes to cost savings on a large scale. Importantly, they do so while enhancing safety and minimizing downtime, factors that are critical in today’s fast-moving industries. Saddle clamps aren’t just pipe fasteners; they are enablers of progress. Their use ensures we can meet the growing demand for advanced, uninterrupted systems across industries. From innovations in design to breakthroughs in material science, saddle clamps are evolving. And as they improve, they will continue to shape the future of utilities, transportation, and critical infrastructure.
