Schedule 40 PVC piping is the standard within the industry for using Schedule 40 PVC pipeline systems in both residential and commercial plumbing applications around the globe. Such pipes have a certain wall thickness that is the optimal balance within the budget. The measurements are in metric, and this gives an accurate specification for foreign jobs and contemporary types of constructions.
Surveys in the plumbing engineering literature indicate that Schedule 40 PVC has dimensions that are comparable among the manufacturers. According to industry analysts, conversions of metrics are done as per specifications laid down in ASTM D-1785. Past technical reports indicate that such pipes manage various pressure ratings that range between 1.52 MPa- 4.14 MPa, according to the diameter. Structural integrity of the pipe is confirmed, and a proportional increase in the size of the pipes is accompanied by a proportional increase in the wall thickness to accommodate the strength of the pipe.
Due to its flexibility, Schedule 40 PVC is indispensable in contemporary buildings. You may be installing a residential water system or a commercial drainage system, but knowing these metric dimensions comes in handy to not only save time but also avoid incurring expensive errors. Smart contractors use these standard sizes as their measurements to guarantee a perfect fit without exception.
What Makes Schedule 40 PVC Pipe Special
The wall becomes thicker in the higher the schedule number increases. Schedule 40 is the most balanced form of steel with the best capabilities and price. This standard is used in most home improvement projects.
The white colour differentiates the schedule 40 from the schedule 80, which is grey. This compatibility makes it possible to mix when a necessity arises, but the pros advise staying on a single schedule to get the best performance.
Pipe Measurement Fundamentals.
PVC pipe employs a nominal size. A 2-inch pipe is not exactly 2 inches in diameter.
Three key measurements define every pipe:
- Nominal size (the name we use)
- Outside diameter (O.D.)
- Inside diameter (I.D.)
- Wall thickness
The nominal size represents the approximate inside diameter. Actual measurements vary based on wall thickness requirements.

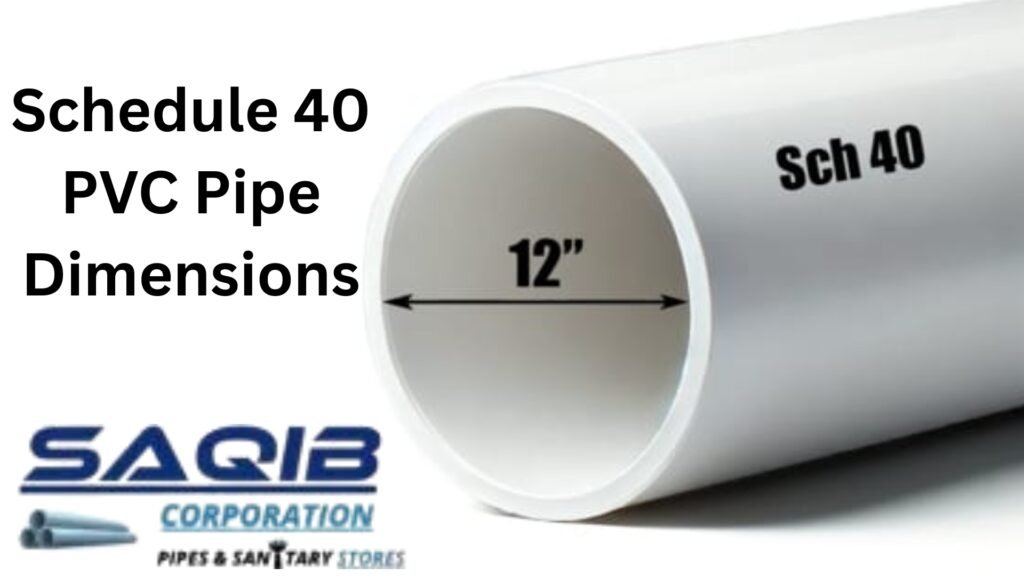

Schedule 40 PVC Pipe Dimensions and Weights
Small Diameter Pipes (1/2″ to
| Pipe Size | Outside Diameter | Inside Diameter | Wall Thickness | Weight per Foot |
| 1/2″ | 0.840 inches | 0.622 inches | 0.109 inches | 0.17 lbs |
| 3/4″ | 1.050 inches | 0.824 inches | 0.113 inches | 0.22 lbs |
| 1″ | 1.315 inches | 1.049 inches | 0.133 inches | 0.33 lbs |
| 1-1/4″ | 1.660 inches | 1.380 inches | 0.140 inches | 0.45 lbs |
1-1/4″)Medium Diameter Pipes (1-1/2″ to 3″)
| Pipe Size | Outside Diameter | Inside Diameter | Wall Thickness | Weight per Foot |
| 1-1/2″ | 1.900 inches | 1.610 inches | 0.145 inches | 0.53 lbs |
| 2″ | 2.375 inches | 2.067 inches | 0.154 inches | 0.72 lbs |
| 2-1/2″ | 2.875 inches | 2.469 inches | 0.203 inches | 1.13 lbs |
| 3″ | 3.500 inches | 3.068 inches | 0.216 inches | 1.43 lbs |
Large Diameter Pipes (4″ to 8″)
| Pipe Size | Outside Diameter | Inside Diameter | Wall Thickness | Weight per Foot |
| 4″ | 4.500 inches | 4.026 inches | 0.237 inches | 2.11 lbs |
| 6″ | 6.625 inches | 6.065 inches | 0.280 inches | 3.20 lbs |
| 8″ | 8.625 inches | 7.981 inches | 0.322 inches | 5.95 lbs |
Extra Large Diameter Pipes (10″ to 24″)
| Pipe Size | Outside Diameter | Inside Diameter | Wall Thickness | Weight per Foot |
| 10″ | 10.750 inches | 10.020 inches | 0.365 inches | 7.53 lbs |
| 12″ | 12.750 inches | 11.938 inches | 0.406 inches | 9.94 lbs |
| 24″ | 24.000 inches | 22.626 inches | 0.687 inches | 33.65 lbs |
Pressure Ratings for Schedule 40 PVC
Pressure capacity decreases as pipe size increases. This relationship exists because larger pipes need more material to maintain strength. Temperature also affects pressure ratings significantly.
Standard pressure ratings at 73°F include:
- 1/2″: 600 PSI
- 3/4″: 480 PSI
- 1″: 450 PSI
- 1-1/4″: 370 PSI
- 1-1/2″: 330 PSI
- 2″: 280 PSI
- 3″: 260 PSI
- 4″: 220 PSI
- 6″: 180 PSI
- 8″: 160 PSI
Temperature affects these ratings dramatically. Higher temperatures reduce pressure capacity. At 140°F, multiply the base rating by 0.22. This reduction protects against pipe failure in hot water applications.

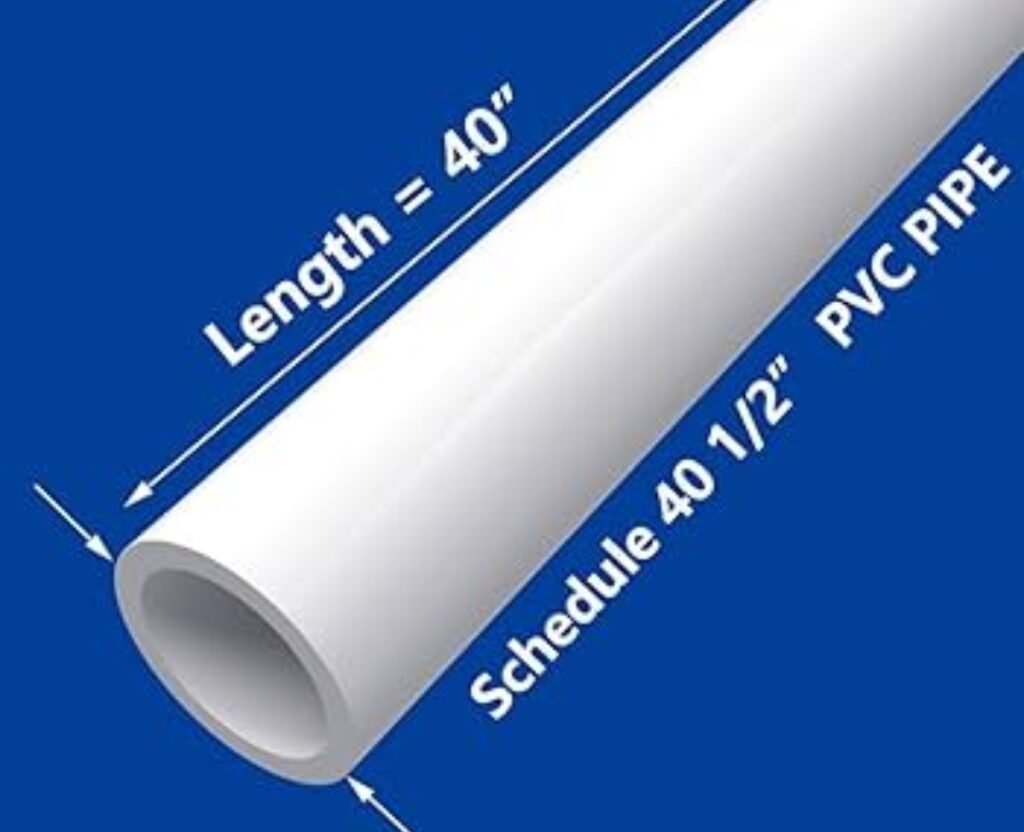

Length Options and Availability
Schedule 40 PVC pipe comes in standard lengths. Most manufacturers produce 20-foot sections for professional use. Home improvement stores stock shorter lengths for consumer convenience.
Common lengths include:
- 2 feet (perfect for repairs)
- 5 feet (manageable for DIY projects)
- 10 feet (standard retail length)
- 20 feet (professional/wholesale)
Some suppliers offer custom lengths. This service costs more but reduces waste for specific projects. Always account for cutting waste when calculating needs.
Applications for Different Pipe Sizes
Residential Water Supply
Small diameters (1/2″ to 1″) handle individual fixtures. Toilets typically use 1/2″ supply lines. Washing machines need 3/4″ for proper filling speed.
Main water lines use larger sizes. A 1″ line serves most single-family homes.
Drainage Applications
Drainage follows different sizing rules. Kitchen sinks drain through 1-1/2″ pipes minimum. Bathroom sinks can use 1-1/4″ drains. Toilets require 3″ or 4″ connections.
Main drain lines use the largest sizes. Residential mains typically measure 4″ in diameter. Commercial buildings often need 6″ or 8″ mains. Municipal systems use even larger dimensions.
Irrigation Systems
Sprinkler systems use various sizes strategically. Zone lines step down to 1″ or 1-1/4″. Drip irrigation uses the smallest sizes. Most systems use 1/2″ main lines with 1/4″ distribution tubing. This sizing provides adequate pressure while minimizing water waste.
Swimming Pool Plumbing
Pool systems require specific sizing for proper circulation. Suction lines typically measure 2″ diameter minimum. Return lines often use 1-1/2″ pipe. Skimmer connections usually need 2″ dimensions.
Spa systems use smaller pipes due to reduced volume. Most spa circulation uses 1-1/2″ pipe throughout. Jet lines may require 2″ for adequate pressure.
Installation Considerations
Cutting and Fitting
Clean cuts ensure proper fitting connections. Use a pipe cutter or fine-tooth saw for best results. Sand cut edges smooth to prevent fitting damage. Measure twice before cutting to avoid waste.
Test-fit all connections before applying solvent cement. PVC pipes expand slightly when heated. Account for thermal movement in long runs. Use expansion joints where necessary.
Support Requirements
Schedule 40 PVC needs proper support spacing. Horizontal runs require supports every 4 feet for sizes up to 4″. Larger pipes need closer spacing to prevent sagging. Use appropriate hangers for each application. Water lines need insulated hangers to prevent condensation. Drainage lines can use standard plastic or metal hangers.
Temperature Limitations
PVC has temperature restrictions that affect performance. Maximum service temperature reaches 140°F for pressure applications. Higher temperatures weaken the material permanently.
Cold weather affects installation procedures. PVC becomes brittle below 40°F. Store pipe in heated areas before winter installation. Allow material to warm before cutting or fitting.
Cost Factors and Budgeting
Pipe cost varies by size, length, and supplier. Smaller diameters cost less per foot but may require more labor for complex systems. Larger pipes cost more upfront but often reduce installation time.
Consider total project costs beyond material prices:
- Fittings add significant expense
- Solvent cement and primer are required
- Tools may need purchasing or rental
- Professional installation costs vary by region
Buy extra material for future repairs. PVC formulations change over time. The current pipe may not match perfectly with future purchases. A 10% overage covers most contingencies.
Quality Standards and Certifications
ASTM D1785 covers dimensions and materials. NSF certification ensures potable water safety. Look for these markings on quality pipe.
Different manufacturers may have slight dimensional variations. Major brands maintain tighter tolerances than generic products. This consistency matters for critical applications. Check local codes before purchasing. Others require upgraded materials for certain installations.
Troubleshooting Common Issues
- Loose fittings often result from improper preparation. Clean all surfaces thoroughly before cementing. Use primer on larger pipes for better bonding. Apply cement evenly and work quickly.
- Oversized holes indicate wrong drill bit selection. Use hole saws designed for specific pipe sizes. Measure carefully before cutting access holes.
- Reduced flow can indicate sizing problems. Calculate pressure drop for long runs. Upsize pipes when necessary to maintain adequate flow. Consider friction losses in fittings and valves.
Conclusion
PVC Schedule 40 pipes are a high-quality quality low-cost, and durable solution to an array of plumbing, drainage, irrigation, and pool applications. They have uniform dimensions, pressure ratings, and fit with a variety of other fittings, which is the main reason why they are very useful in homes and businesses. Industrial contractor or amateur DIYer alike, knowing the size, use,s and installation specifics of Schedule 40 PVC can save us all time and money and lots of headaches.
Schedule 40 PVC is strong enough to serve as the building material of choice in municipal systems, and durable enough to provide a domestic water supply at houses with small-diameter plumbing. It is ideal because it can be applied at different pressure ratings; it is simple to install and light in weight, hence suitable for engineers and plumbers in every part of the world.
Do you have questions or need more help? Post your comments below or contact our plumbing expert to receive specific advice. And next project work with trusted reliability with Schedule 40 PVC Pipe Dimensions!
